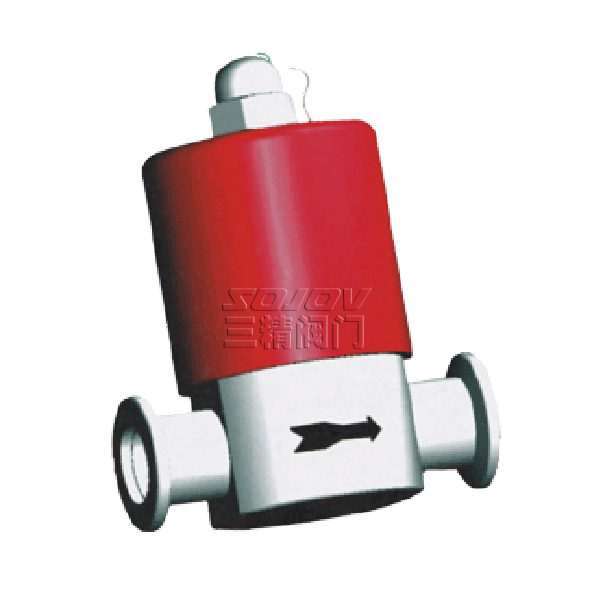

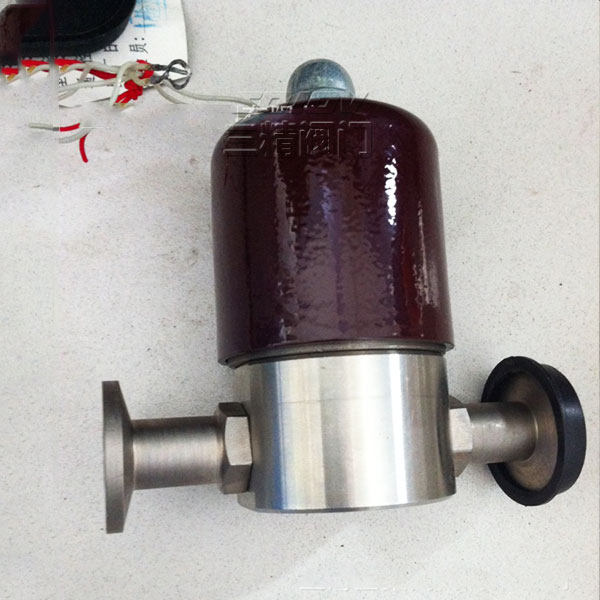

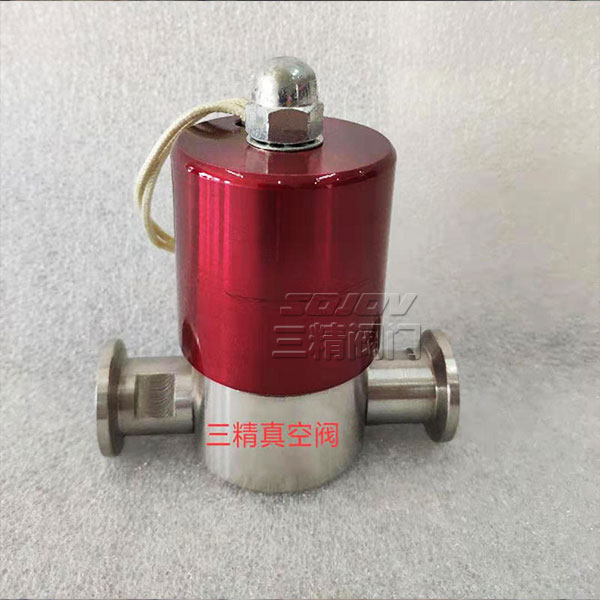

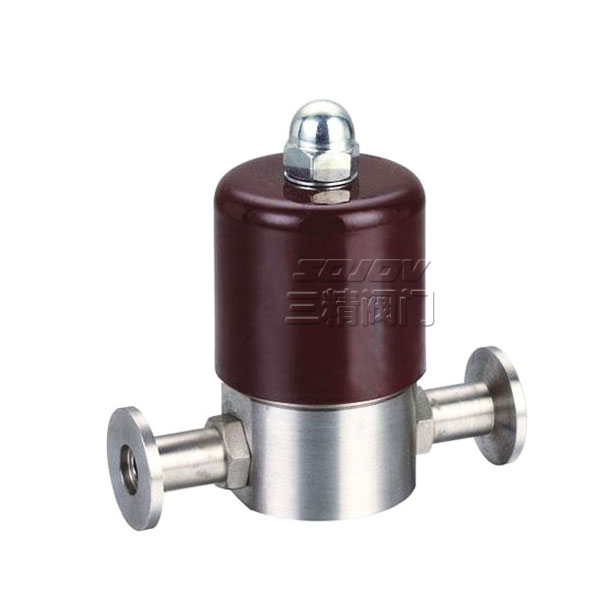

GDC-5电磁高真空挡板阀
GDC-5型电磁高真空挡板阀是连接在真空管路上，用来接通或截止真空系统中的气流，或作充气阀用。当通电时将P、A端管路接通、断电时切断P、A端管路，保持P端真空系统的真空度。适用介质为纯净空气和非腐蚀性气体。
产品详情
GDC-5型电磁高真空挡板阀概述
GDC-5型电磁高真空挡板阀是连接在真空管路上，用来接通或截止真空系统中的气流，或作充气阀用。当通电时将P、A端管路接通、断电时切断P、A端管路，保持P端真空系统的真空度。适用介质为纯净空气和非腐蚀性气体。
Electro High Vacuum Flapper Valve
GDC-5 electro high vacuum flapper valve is mounted in vacuum pipeline to put through or cut off the airflow in vacuum system, or used as a charging vale. When power is connected, pipes at P and A will be put through, and when power is disconnected, pipes at P and A will be cut off, to keep the vacuum system at P vacuum. Applicable medium can be pure air and noncorrosive gases.
GDC-5型电磁高真空挡板阀主要技术性能
Main Technical Performance
| 公称通径：Nominal Diameter | 5mm |
| 适用范围：Applicability | 105～1.3×10-4Pa |
| 阀门漏率：Valve Leak Rate | ≤1.3×10-4Pa.L/S. |
| 适用温度：Applicable Temperature | -30～+50℃ |
| 线围温升：Coil Temperature Rise | ≤65℃ |
| 电源电压：Mains Voltage | 220V/50Hz |
| 安装方向：Mounting Direction | 垂直或水平 |
