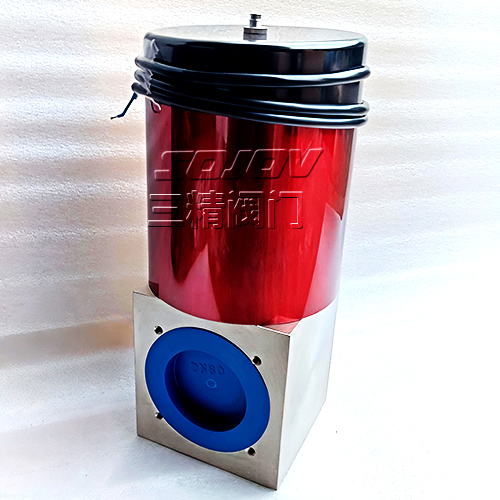

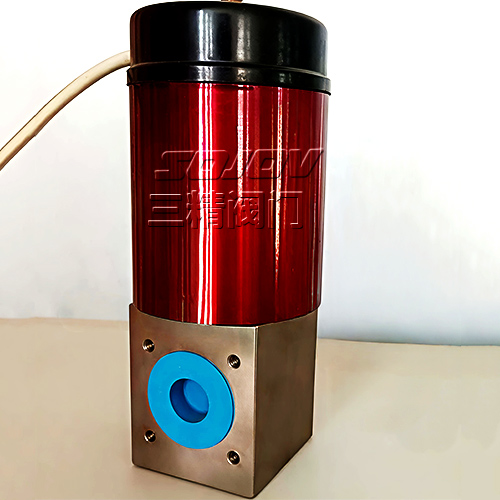

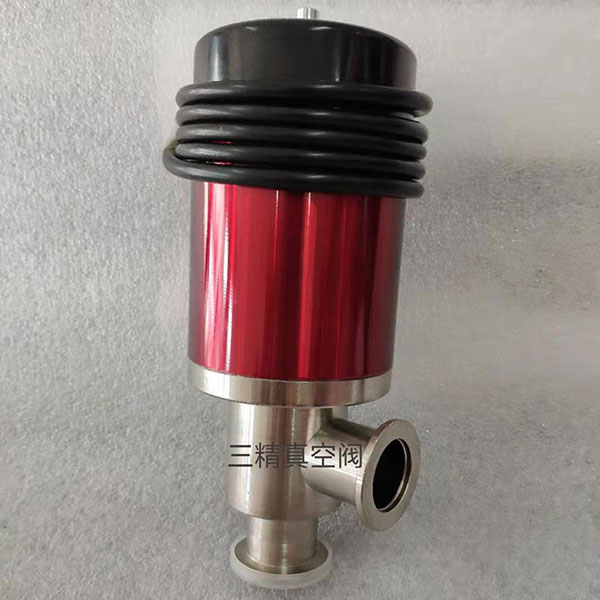

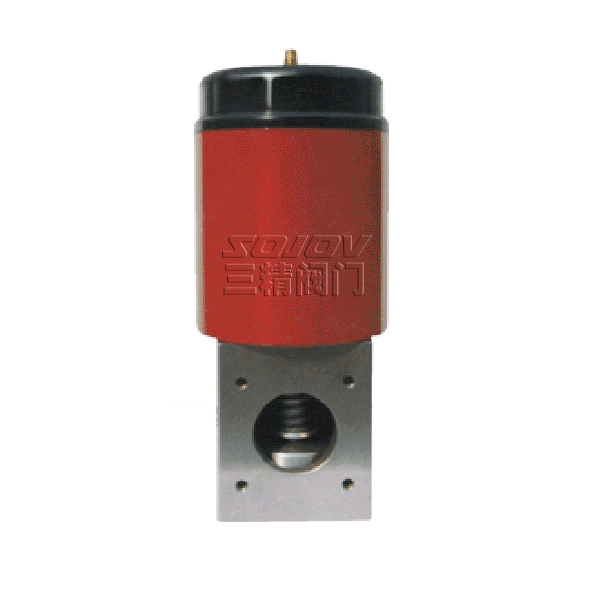

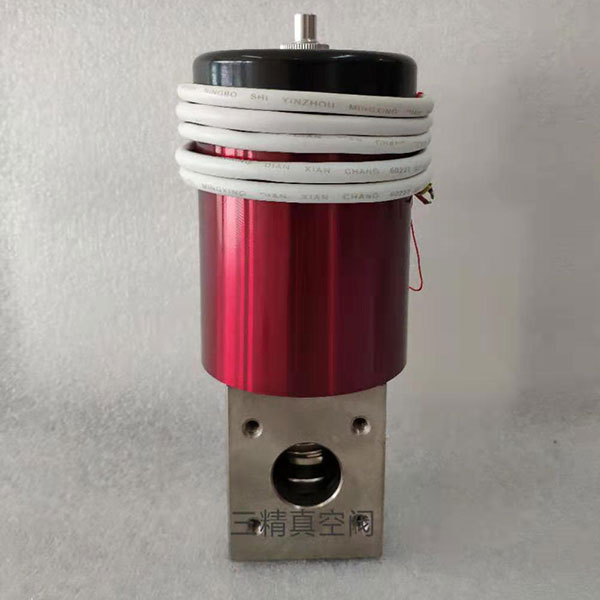

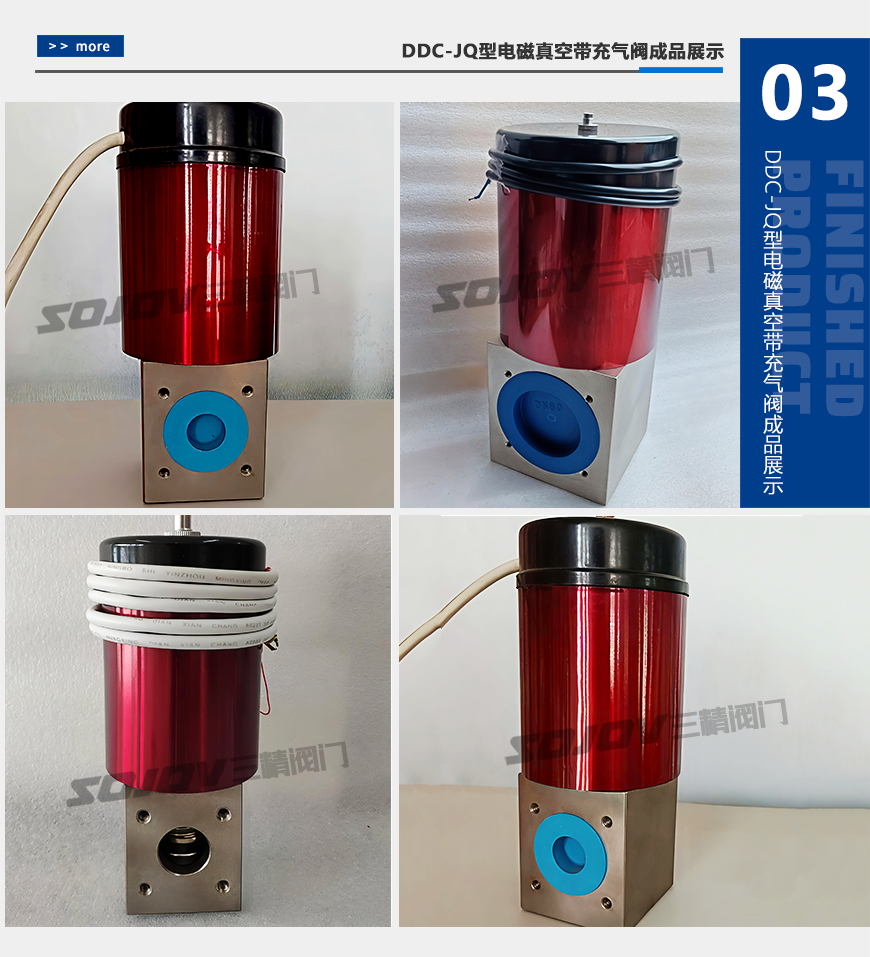

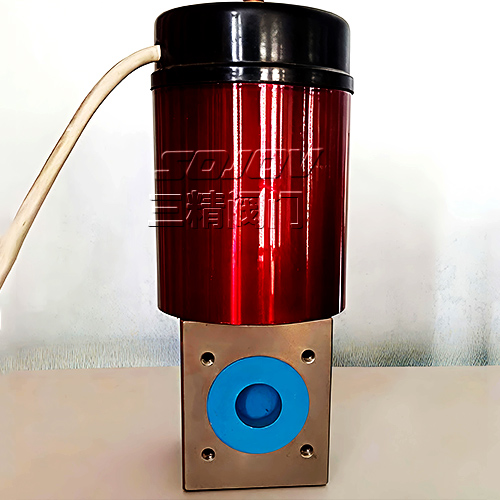

DDC-JQ型电磁真空带充气阀
DDC-JQ型-电磁真空带充气阀概述
DDC-JQ型电磁真空带充气阀是机械真空泵安全阀，安装于机械真空泵的进气口，并与泵同步开启和关闭。当泵停止工作或电源突然中断时，阀门自动关闭，使真空系统保持真空并将大气充入泵腔内，从而避免泵油逆向流动而污染真空系统。适用介质为纯净空气或非腐蚀性气体。
DDC-JQ electromagnetic vacuum belt inflatable valve is a mechanical vacuum pump safety valve, installed in the mechanical vacuum pump inlet, and synchronously open and close with the pump. When the pump stops working or the power supply suddenly interrupts, the valve automatically closes, so that the vacuum system keeps vacuum and fills the air into the pump cavity, thereby avoiding the reverse flow of pump oil and polluting the vacuum system. The applicable medium is pure air or non corrosive gas.
DDC-JQ型电磁真空带充气阀主要技术性能
| 适用范围：Applicability | 105～10-2Pa |
| 阀门漏率：Valve Leak Rate | ≤6.7×10-3Pa.L/S. |
| 适用温度：Applicability | -30～+50℃ |
| 线围温升：Coil Temperature Rise | ≤65℃ |
| 开闭时间：Open-close Time | ≤3S |
| 电源电压：Mains Voltage | 220V/50Hz |
DDC-JQ型电磁真空带充气阀主要零件材料
阀体、阀盖、阀板：碳钢或铝合金
Body, bonnet, valve plate: carbon steel or aluminum alloy.
密封圈：丁腈橡胶
Sealing ring: nitrile rubber

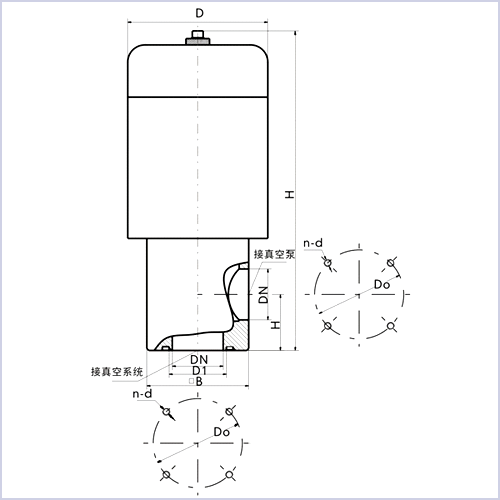

DDC-JQ型电磁真空带充气阀外形及连接尺寸
|
Model
型号 |
DN
|
h
|
B
|
H
|
D
|
Do
|
D1
|
n-d
|
Machineal pump
机械泵匹配参考 |
|
DDC-JQ16
|
16
|
28
|
48
|
176
|
68
|
42
|
22
|
4-M5
|
2XZ-0.5～1
|
|
DDC-JQ25
|
25
|
35
|
58
|
199
|
82
|
55
|
29
|
4-M6
|
2XZ-2～4
|
|
DDC-JQ32
|
32
|
40
|
68
|
222
|
92
|
64
|
36
|
4-M6
|
2XZ-4
|
|
DDC-JQ40
|
40
|
44
|
80
|
253
|
110
|
70
|
44
|
4-M6
|
2XZ-8
|
|
DDC-JQ50
|
50
|
56
|
94
|
294
|
124
|
90
|
55
|
4-M8
|
2X-15
|
|
DDC-JQ65
|
65
|
65
|
115
|
320
|
135
|
105
|
70
|
4-M8
|
2X-30
|
|
DDC-JQ80
|
80
|
75
|
140
|
367
|
165
|
125
|
85
|
4-M8
|
2X-70
|
